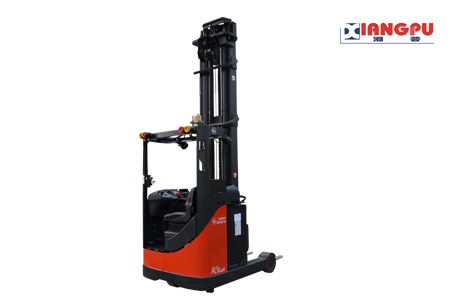

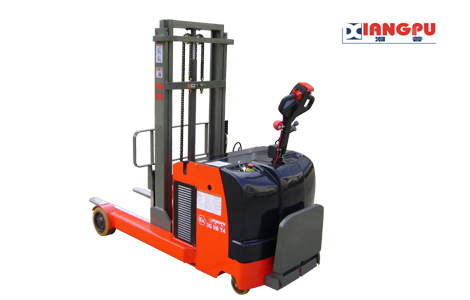

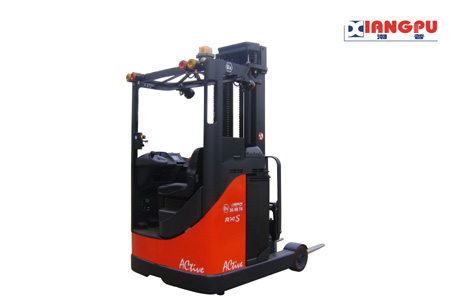

Ex-proof Reach Truck
Rated Load Weight（kg）：1.0ton – 1.4ton
| XP Ex-proof Reach Truck |
1）Performance Parameter
| No. | Item | Parameter |
| 1 |
Rated Load Weight（kg） |
1000 1400 1600…… |
| 2 | Loading Center（mm） | 500 |
| 3 |
Applicable Hazard Zone |
Zone1/Zone21、Zone 2/Zone22 |
| 4 | Ex-proof Level | IIA IIB IIC / IIIA IIIB |
| 5 |
Temperature Class |
T1(450℃)-T4（135℃） |
| 6 |
Xiangpu Ex-proof Systems |
XP-Supe, XP-Air(E), XP-Bie, XP-WP |
2) Application
- Zone 1 and Zone 2 explosive gas environment; Zone 21 and Zone 22 flammable dust environment; 'Bi-environment’ with both explosive gas and flammable dust.
- Hazardous circumstances with T1-T4 temperature grouping and IIA, IIB & IIC explosive gas grouping.
- Application industries, including petrochemical, petroleum, chemical, metallurgy, logistics, aerospace, painting, coating, war industry, etc.
- Loading, unloading, stacking and transporting area for hazardous material production and storage.
3) Features
Safety
The active range has established itself as a leading performer in intensive narrow aisle storage and retrieval applications, with superb levels of operator comfort, safety and impressive productivity productivity ratios.
Stability
Chassis designed and built for maximum strength and durability.
Heavy-duty construction materials and components provide low centre if gravity for stability and high residual capacities
------------------------------------------------------------------------------------------
| XP Explosion-proof System |
1）XP-Supe explosion-proof system: effectively control various ignition sources of forklift
XP-Supe explosion-proof system is designed for battery vehicle and other electrical powered equipment. This system is equipped with explosion-proof battery as vehicle power source. Moving and working devices are driven by explosion-proof electric motor. There are explosion-proof instruments, explosion-proof switches, explosion-proof lightings, explosion-poof horn, explosion-proof electric box and other necessary safety protection precaution in the explosion-proof forklift.
In the meanwhile, the explosion-proof forklift is equipped with automatic safety protection device and temperature sensors, to monitor the surface temperature of high heat parts, such as electrical motor. Once the surface temperature of protected parts reaches the specified temperature level, the safety protection device will cut off the power supply to shut down the forklift, and to keep the forklift working in safety status.
2）XP-Air(E) ex-proof system: provide Zone 2 active protection for electric forklift
- Detection and control: continuous monitor explosive gas density, and automatic alarm or shutdown once density reaches setting level. Emergency stop for manual operation.
- Compulsory self-check procedure: check electric components working condition and flammable gas density for safety start and operation.
- Temperature controlling device: continuously detect and control surface temperature of the high-heat parts for temperature limitation.
- Protect vehicle components from possible arc, spark and static.
