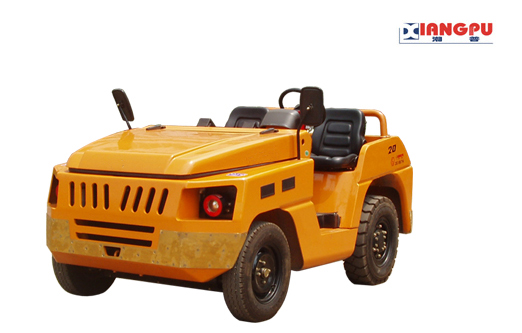

Ex-proof Diesel Tractor
Load capacity（kg）:26000-10000
| Xiang Pu-hang fork" explosion-proof diesel tractor |
1) Performance parameters
| No. | Item | Parameter |
| 1 | Load capacity（kg） | 26000-100000 |
| 2 | Load center distance (mm) | / |
| 3 | Applicable Hazard Zone | Zone1/Zone21、Zone 2/Zone22 |
| 4 | Ex-proof Level | IIA IIB IIC / IIIA IIIB |
| 5 | Temperature Class | T1(450℃)-T4（135℃） |
| 6 | Equipped with "HC" model that can carry Xiangpu explosion-proof system | QC（D）20、QC（D）25、QCD80 etc |
* The parameters of the rated carrying capacity in the above table can reach up to 100000kg;
- Advanced tractor production technology and engine, automatic transmission and other parts assembly, strong power, excellent performance, comfortable operation, reach the international advanced level.
- The new integrated power steering greatly reduces steering resistance and increases flexibility.
- With standard two-speed automatic transmission, the operation is more convenient. Operators do not have to worry about shifting. They only need to concentrate and operate. The steering wheel automatic transmission is equipped with a hydraulic oil cooler, which is more safe and reliable.
- Large open pedal allows the operator to get on and off easily and conveniently.
- Easy-to-read instrument panel, with all instruments and warning lights centered on the instrument panel, vehicle status at a glance. Dashboard equipped with a timer, torque converter oil temperature gauge, brake warning light, neutral gear indicator all switches are set Easy to operate.
- The tractor is suitable for the haulage operations of civil aviation airports, railway stations, postal services, ports, warehouses, and industrial freight trains or single trailers. It is already operated by Air China, China Eastern Airlines, China Southern Airlines, and the State Post Office. Widely used in many airports.
-------------------------------------------------------------------------------------
| LeadingTechnology Industry Benchmark |
Diesel tractors of different specifications can be equipped with Xiangpu XP-Aut or XP-Air (D) explosion-proof safety system.
1) XP-Aut explosion-proof system: Effective control of various ignition sources of vehicles
The explosion-proof treatment of the intake and exhaust chambers of the diesel engine prevents the combustion flames and sparks from exiting.
Explosion-proof cooling system controls normal surface temperature, diesel water temperature and exhaust temperature.
Electrical components such as starters, generators, batteries, switches, and meters are explosion-proof to eliminate or control arcs and sparks.
Antistatic drive belts, tires, non-metal fans.
Automatic control and parking system, automatic sensing and flameout parking protection for over-temperature points and diesel engine oil pressure, speed, etc.
Equipped with explosion-proof horns and lamps.
2) XP-Air(D) Explosion Protection System: Provides active explosion protection for diesel vehicles used in Zone 2 hazardous locations
Continuous monitoring of the concentration of explosive gas in the operating environment of the forklift, as well as the engine water temperature, exhaust temperature, oil pressure and rotational speed, and when it reaches a limit value, automatic alarm or flameout stop.
Equipped with intake valve, exhaust heat exchanger, etc., to control the surface temperature of the main heating components.
-------------------------------------------------------------------------------------
2) Application
- Dangerous environments in areas 1 and 2 of explosive gas atmospheres, combustible dust 21, 22, or both
- Hazardous dust in category IIA and IIB and T1-T4 temperature group in T1-T4 temperature group
- Petroleum, petrochemical, chemical, military, aerospace, marine, natural gas, smelting, pharmaceutical, logistics and other industries
- Workshops and installations for processing and producing flammable hazardous substances, or warehouses and yards for storage of flammable hazardous substances
----------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------
